Professional Automatic Labeling Solution for Production Lines

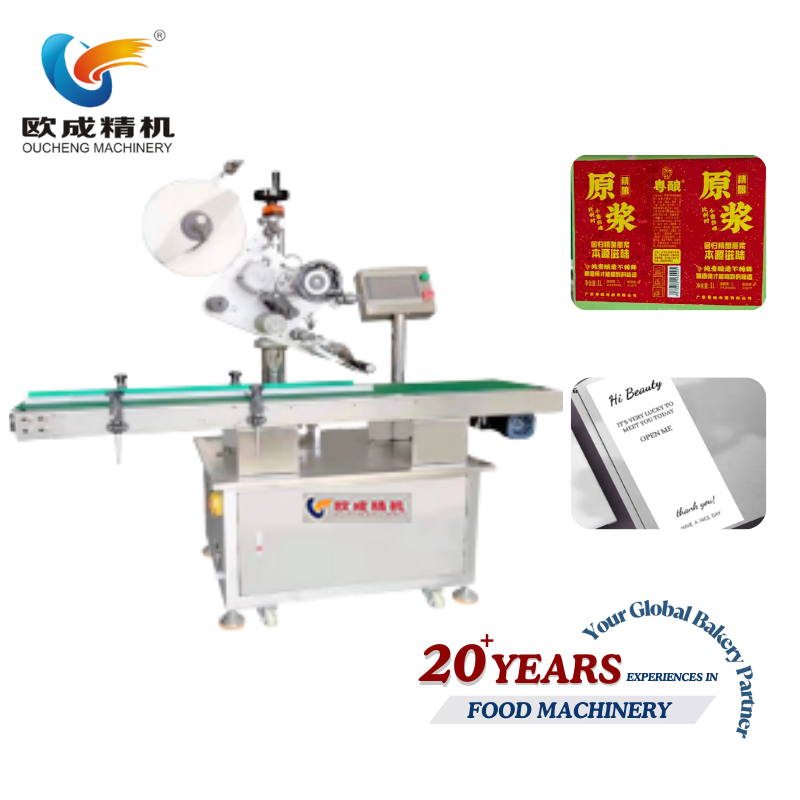

The OC-113 Fully Automatic Flat Labeling Machine delivers precision label application at speeds up to 100 pieces per minute with ±1mm accuracy. Engineered with imported German photoelectric sensors and Panasonic PLC control, this advanced labeling system features roller-based application to reduce air bubbles, automatic product sensing, and versatile compatibility with various product and label sizes for efficient packaging line integration.
How It Works
The OC-113 employs a sophisticated automatic labeling process controlled by a Panasonic PLC and WECON human-machine interface. Products are placed on the fixture, and either a foot switch sends position information or the Panasonic product sensor automatically detects the product's presence. The imported German LEUZE/SICK label sensor precisely identifies label positioning on the roll. Once triggered, the BALE/YAKO traction motor releases the label from the roll (inner diameter 76mm, outer diameter up to 300mm) and applies it to the product using a roller system that minimizes air bubbles. The labeling head then returns to its original position to pick up the next label, waiting for the next signal. This complete cycle achieves labeling speeds of 0-100 pieces per minute (depending on product and label size) with ±1mm accuracy, handling products up to 485mm length × 400mm width × 100mm height and labels ranging from 10-310mm length with liner widths of 10-235mm.
Key Features
- Imported German Photoelectric Sensors: LEUZE/SICK sensors provide precise, stable, and reliable label detection for consistent positioning accuracy
- Roller Application System: Applies labels using roller mechanism to reduce air bubbles and ensure smooth, professional label adhesion
- Automatic Product Sensing: Panasonic product sensor automatically detects product position, or manual foot switch triggers labeling action for flexible operation
- High-Speed Precision: Achieves 0-100 pieces/min labeling speed with ±1mm accuracy (excluding product label errors), ideal for production line integration
- Versatile Compatibility: Accommodates products up to 485×400×100mm and labels 10-310mm length, with 2-3mm±0.2 label spacing for roll-fed labels
Applications
Ideal for food packaging facilities, bakery production lines, beverage manufacturers, cosmetics packaging, pharmaceutical labeling, and commercial packaging operations requiring flat surface label application. Perfect for labeling boxes, cartons, bags, trays, containers, and flat-surfaced products in high-volume production environments where precision, speed, and automation are essential for efficient packaging workflows.
Technical Specifications
| Specification | Value |
|---|---|
| Model | OC-113 |
| Production Capacity | 25 lines/min |
| Labeling Speed | 0-100 pieces/min (varies by product/label size) |
| Labeling Accuracy | ±1mm (excluding product label errors) |
| Label Spacing | 2-3mm ±0.2 (roll-fed labels) |
| Applicable Product Size | Length: 485mm, Width: 400mm, Height: 100mm (max) |
| Applicable Label Range | Length: 10-310mm, Liner Width: 10-235mm |
| Maximum Label Supply | Outer diameter: 300mm, Inner diameter: 76mm |
| Voltage | 220V 4P 50Hz |
| Total Power | 1.2kW |
| Weight | ≈160kg |
| Dimensions (L×W×H) | 2000×1100×1500mm |
Quality Components
- Machine frame: 45# steel and aluminum casting materials
- Frame parts: Food-grade stainless steel
- Traction mechanism: Diamond steel and aluminum alloy
- Electrical cabinet: Diamond steel and aluminum alloy
- Label sensor: LEUZE/SICK (Germany)
- Product sensor: Panasonic
- Labeling head traction motor: BALE/YAKO
- Human-machine interface (HMI): WECON
- Conveyor belt: Food-grade PU (polyurethane)
- Guiding mechanism: Diamond steel and aluminum alloy
- PLC: Panasonic
