OC-1510A Single-Roller Main Forming Machine | Automated Dough Forming Equipment

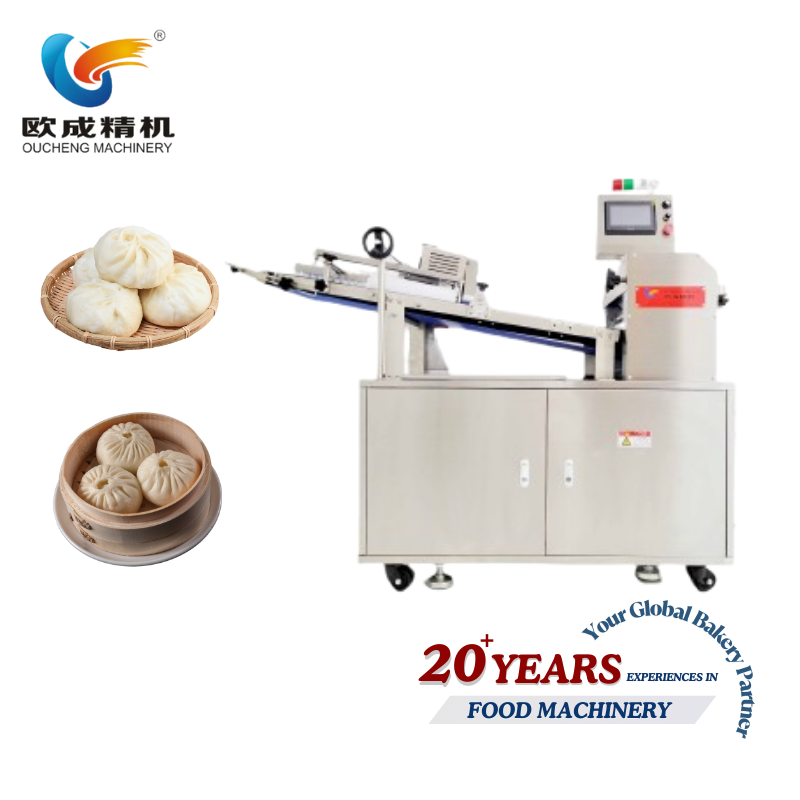

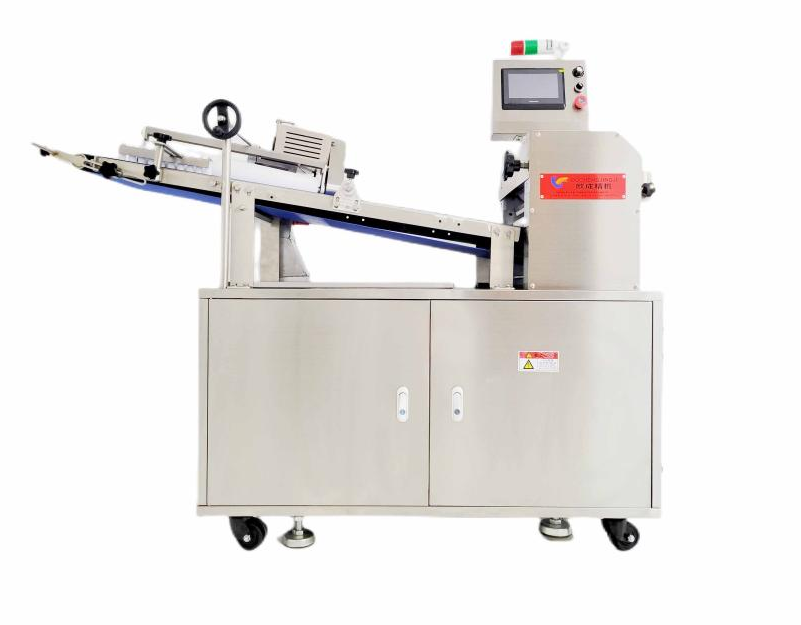

OC-1510A Single-Roller Main Forming Machine

The OC-1510A is a high-precision dough forming machine designed for commercial bakeries seeking consistent quality and automated production. This single-roller system delivers smooth, glossy dough texture while preserving traditional handmade flavor.

How It Works

The dough first passes through a large adjustable roller to flatten it to the desired thickness. Using a progressive pressing method, the dough is further thinned, resulting in a smoother, glossier texture and enhanced product consistency and quality. The rolling mechanism shapes the dough into long strips, with a built-in photoelectric control system that automatically adjusts the roller speed, ensuring a high degree of automation.

Key Features

• Progressive Pressing Technology: Multi-stage thinning process creates smoother, glossier dough texture with superior consistency
• Heat-Free Processing: Gentle forming method preserves dough integrity and traditional handmade flavor without generating heat
• Intelligent Automation: Built-in photoelectric control system automatically adjusts roller speed for optimal performance
• Modular Flexibility: Highly adaptable production line capable of producing different products by pairing with various equipment modules
• Customizable Configuration: Machine can be selected based on product specifications or customized to meet specific customer requirements

Applications

Ideal for commercial bakeries and food production facilities producing bread, buns, pastries, mooncakes, steamed buns, and other dough-based products requiring consistent forming and shaping. Perfect for operations seeking to scale production while maintaining artisanal quality.

Technical Specifications

• Production Capacity: 60-120 pieces/min
• Product Specifications: 10-120g
• Voltage: 380V 4P 50HZ
• Total Power: 1.1 kW
• Weight: Approximately 350 kg
• Dimensions: 1530 × 700 × 1650 mm

Quality Components

Built with premium materials including food-grade stainless steel frame, chrome-plated rods, 304 stainless steel components, food-grade PU conveyor belts, and UPE dough pressing rollers. Features reliable electrical components from trusted brands including INOVANCE PLC and touch screen, TECO motors, LEUZE sensors, and OMRON relays.
