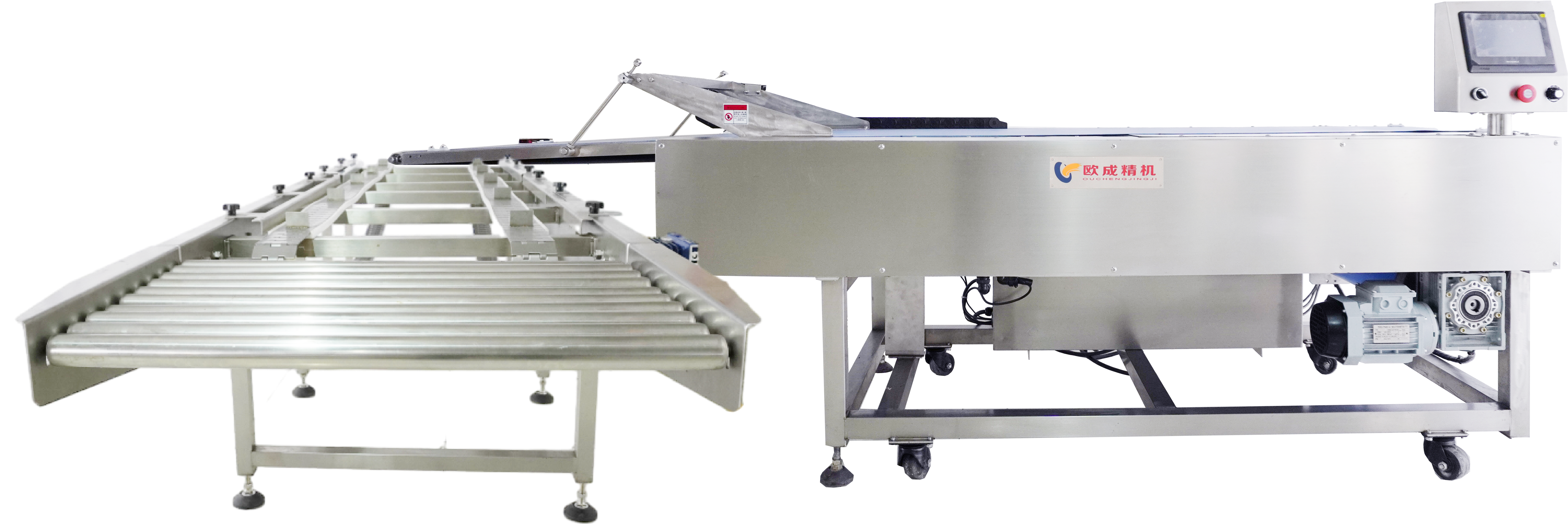

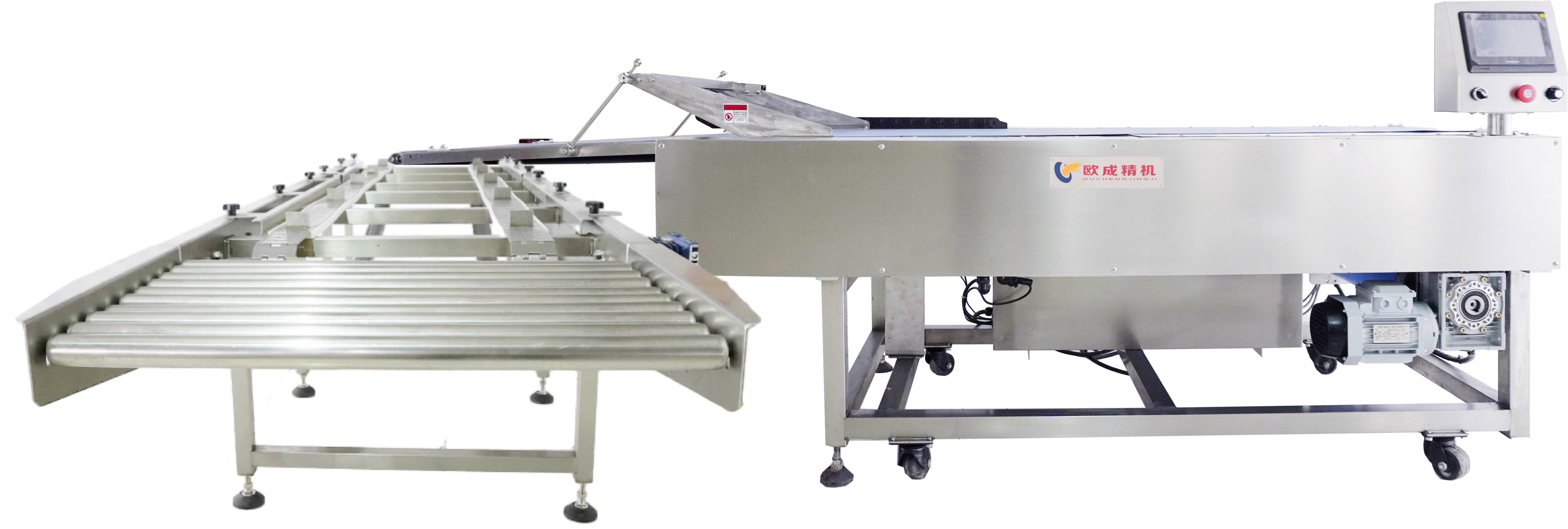

OC-861 High-Speed Horizontal Tray Arranging Machine | Tray Arranging & Automation Equipment

Brief Introduction

The OC-861 High-Speed Horizontal Tray Arranging Machine features fully computerized parameter management with a simple and easy-to-understand operating interface. Designed for high-volume bakery production with horizontal arrangement capability, this machine delivers exceptional speed and precision with a production capacity of 70-120 pieces per minute.

How It Works

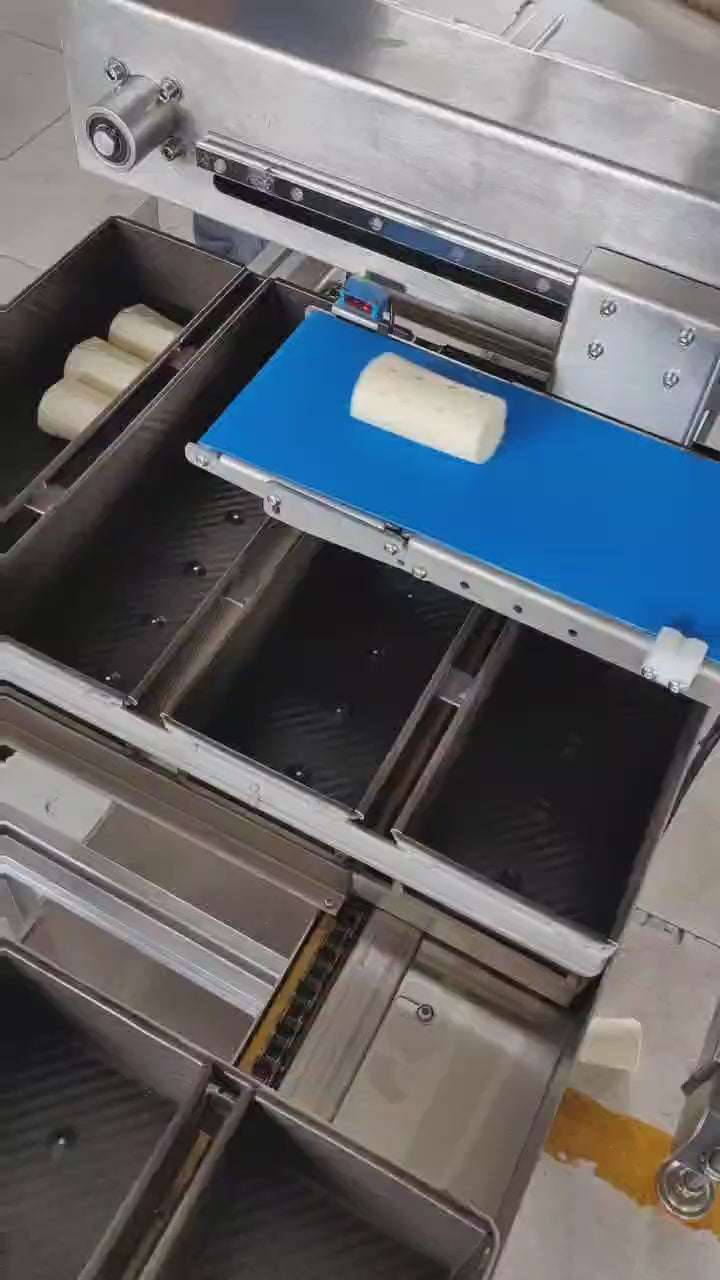

Equipped with a servo motor positioning system, the OC-861 ensures precise product placement on baking trays in a horizontal configuration. The arranging patterns can be customized according to customer requirements, and the machine can be tailored for single-row or double-row, parallel or cross-arrangement configurations based on production needs. Special models can be customized to fit various sizes of baking trays, making it highly adaptable to different production requirements.

Key Features

• High-speed horizontal production capacity: 70-120 pieces per minute
• Fully computerized parameter management with intuitive INOVANCE touch screen interface
• Servo motor positioning system for precise horizontal product placement
• Customizable arranging patterns: single/double-row, parallel/cross configurations
• Adaptable to various baking tray sizes with special customization options
• Premium international components: LEUZE sensors (Germany), OMRON relays (Japan)
• Food-grade materials: PU conveyor belt, stainless steel contact surfaces
• Robust construction with 45# steel frame and aluminum casting materials
• Compact horizontal design: 3030×3400×1104 mm footprint

Applications

Ideal for high-volume automated bakery production lines requiring fast and consistent horizontal product arrangement onto baking trays. Particularly suitable for products that benefit from horizontal placement including bread loaves, buns, pastries, cookies, and other baked goods. The customizable arrangement patterns and tray specifications make it perfect for diverse production requirements across different bakery operations.

Technical Specifications

• Model: OC-861
• Production Capacity: 70-120 Pcs/Min
• Voltage: 380V 4P 50HZ
• Total Power: 3 Kw
• Weight: ≈580 Kg
• Dimensions: 3030×3400×1104 mm

Main Components

• PLC & Touch Screen: INOVANCE (China)
• Sensors: LEUZE (Germany)
• Relay: OMRON (Japan)
• Slider & Guide Rail: HIWIN (China)
• Frequency Converter: INOVANCE (China)
• Planetary Reducer: Zhongda (China)
• Power Supply: MEAN WELL (China)
• Bearings: HRB (China)
• Frame: 45# steel and aluminum casting with food-grade stainless steel
• Conveyor Belt: Food-grade PU (Polyurethane)
